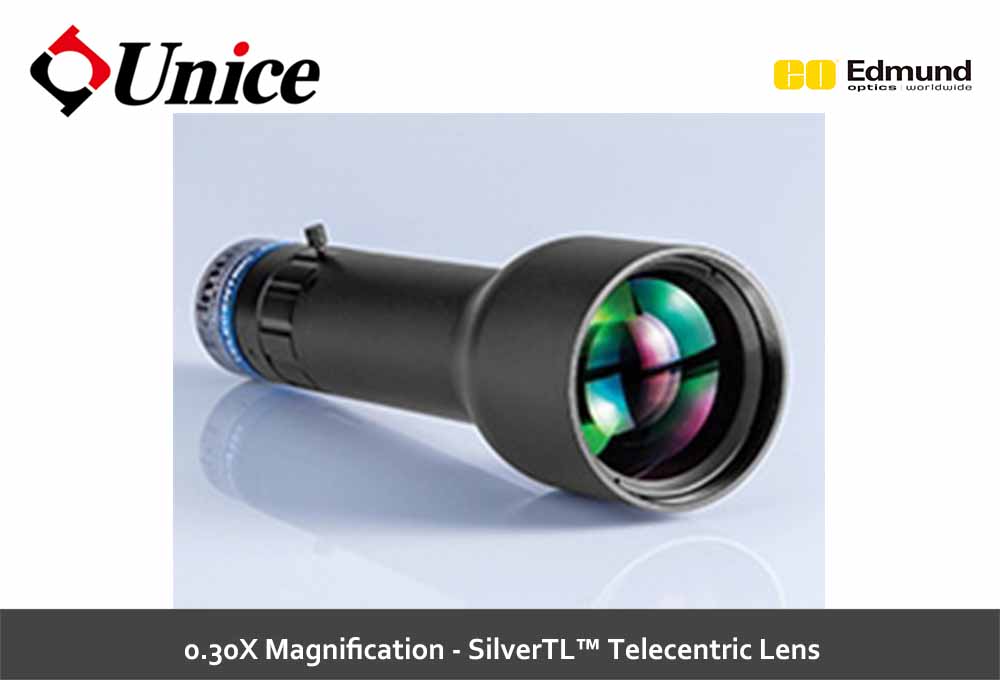

| Model No |
UNI58428 |
| Primary Magnification |
0.3X |
| Max. Sensor Format |
1/2" |
| FOV@Max Sensor Format, HxV(mm) |
21.3 x 16.0 |
| Working Distance (mm) |
139.00 |
| Aperture (f/#) |
f/6 - f/22 |
| Coating |
Lens Elements: BBAR from 425 - 675nm |
| Mount |
C-Mount |
| Type |
Telecentric Lens |
| Construction |
Anodized Aluminum |
| Depth of Field (mm) |
±5.7 at f/10 (20% @ 20 lp/mm) |
| FOV, 1/2\" Sensor |
21.3mm |
| FOV, 1/3\" Sensor |
16mm |
| Filter Thread |
M43 x 0.75 |
| Length excluding Threads (mm) |
158.00 |
| Maximum Diameter (mm) |
46.00 |
| Number of Elements (Groups) |
7 (6) |
| NA, Object Side |
0.025 |
| Resolution, Image Space MTF @ f/10 |
>40% @ 40 lp/mm |
| Typical Distortion @ 588nm (%) |
<0.015 |
| Typical Telecentricity @ 588nm (°) |
<0.025 |
| Weight (g) |
291 |
| Working Distance Tolerance (mm) |
±3 |
| RoHS |
Compliant |
