V2528-MPY 12 Megapixel Lens

Model：V2528-MPY
Description：

Price(USD)：$0

Content

Model		V2528-MPY
Focal Length		25mm
Max. Aperture Ratio		1:2.8
Max. Image Format		14.2mm x 10.4mm (Φ17.6mm)
Operation Range	Iris	F2.8 - F16.0
Operation Range	Focus	0.3m - Inf.
Control	Iris	Manual
Control	Focus	Manual
Object Dimension at M.O.D		158.7(H)mm x 116.2(V)mm 1.1"
Angle of View	D	1.1"	38.7°	1"	35.4°	2/3"	24.8°
	H		31.7°		28.7°		20.0°
	V		23.5°		21.7°		15.0°
Operating Temperature		-10° C ~ +50° C
Distortion		1.1"	-0.3%(y=8.8)	1"	0.2%(y=8.0)	2/3"	0.1%(y=5.5)
Back Focal Length		11.3mm
Flange Back Length		17.526mm
Mount		C-Mount
Filter Size		M34.0 P=0.5mm
Weight		78g
Dimensions		Φ39.5mm x 34mm

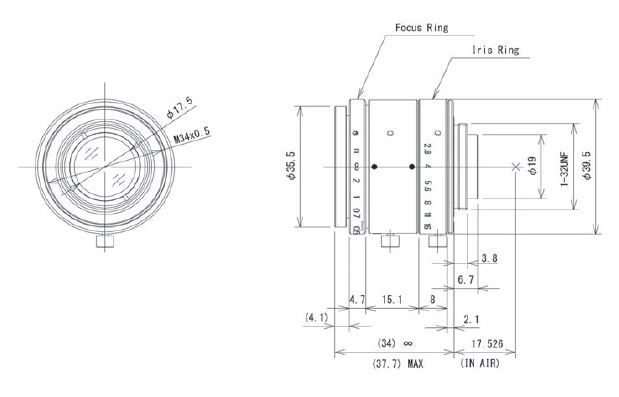

Dimensions
