Product name : Zipcord Fanout Tubing
Description :

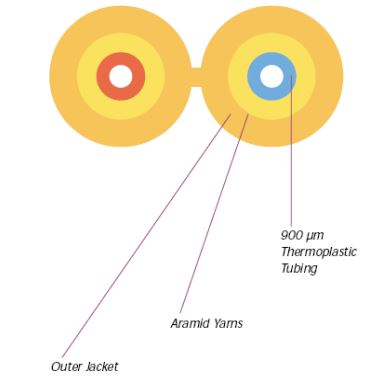

● Unice’s Zipcord Fanout Tubing can provide superior extra protection for protection of 250um fibers and aramid strength member inside to enhance the cable strength.
● Outer jacket can be Flame-retardant PVC which meets the requirements of National Electrical Code (NEC article 770) and also meets the requirement of Green Policy in Europe countries.
More detail products information please contact with our services center.
E-mail: unicehq@unice.com.tw
More detail products information please contact with our services center. E-mail: unicehq@unice.com.tw
Specification
| Inner Diameter of Buffer Tubing, um | 500 ± 50 | |||||
| Outer Diameter of Buffer Tubing, um | 900 ± 50 | |||||
| Material for Buffer Tubing | Hytrel | |||||
| Cable Diameter, mm | 1.6×3.7 | 2.0×4.2 | 2.4×5.0 | 2.9×6.0 | ||
| Weight, kg/km | 2.8 | 4.3 | 5.6 | 8 | ||
| Max. Tensile Load | Load, N | 80 | 200 | 400 | 400 | |
| Unload, N | 40 | 100 | 200 | 200 | ||
| Min. Bend Radius | Load, cm | 3.2 | 4 | 4.8 | 5.8 | |
| Unload, cm | 1.6 | 2 | 2.4 | 2.9 | ||
| Applications | For the protection of 250 um fiber | |||||
| Jacket Color | Yellow, Orange or Aqua | |||||
| Application Temperature | PVC | -40 ~ +85℃ | ||||
| LSZH | -20 ~ +70℃ | |||||
 |
||||||
