Admesy Asteria Series

Model:Admesy Asteria Series
Description:
    Admesy’s Asteria is a high-speed measurement device suited for luminance, illuminance and flicker measurements. Based on the popular Admesy platform the Asteria is designed for in-line use with integrated calculating power for easy implementation and high speed measurement results in production settings. The Asteria is available in multiple configurations: the lens based system is capable of measuring luminance [cd/m²] and flicker, its cosine Corrector configuration allows illuminance [lux], luminous intensity [cd] and flicker measurements. Fibre versions are also available to connect to remote cosine correctors, lens systems or connect to integrating spheres.

    Highlights

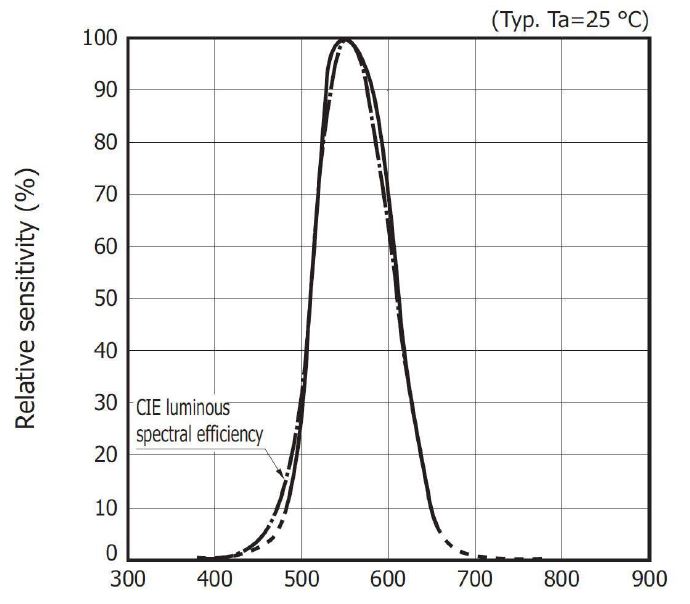

    •   Absolute luminance or illuminance & luminous intensity measurement according to the human eye: CIE1931 luminosity function
    •   All flicker measurement standards supported for display: Contrast, JEITA, VESA
    •   Lighting flicker methods: flicker percentage, index and IEEE 1789 recommendation
    •   Measure high and low frequencies at the same time through a high sample rate [186.567 samples/second] and large memory size
    •   Trigger input and output for in line applications
    •   Windows, Linux, OSX and embedded systems compatible
    •   SCPI command interface for easy integration in other applications
    •   Supported in all major programming languages Labview / Labwindows / Visual Studio [C++, C#, VB]/ etc.
    •   USBTMC standard compliant
    •   Integrating- and sampling mode available
    •   3 gain stages for every mode
    •   Auto-range function
    •   User calibration function and pre-programmed calibration values
